Description

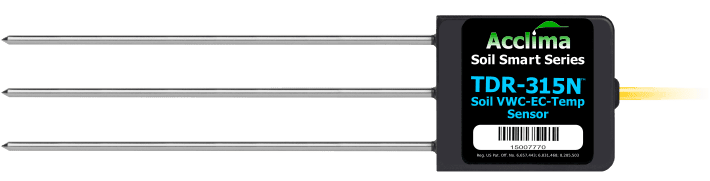

The TDR-315N is Acclima’s flagship Soil Smart TDR moisture sensor. It has a much higher amplitude waveform than our H-series sensors, which consumes more power but makes it very effective in taking accurate measurements in challenging soil environments. Being part of the Soil Smart Series means that its advanced waveform analysis works with all mineral soil types. It is a complete integrated time domain reflectometer that combines ultra-fast waveform generating and digitizing functions with a precision 5 pico-second resolution time base and highly sophisticated waveform digitizing and analyzing firmware that provides true time domain analysis of soil-propagated waveforms. Its longer waveguides provide a very large sampling volume and high accuracy of the waveform propagation.
Its form factor is designed for shallower horizontal installations where it is pushed into the sidewall of a trench that has been dug to the desired measurement depth. A probe guide is provided to ensure that the waveguide rods are parallel when pushing them into the soil. It provides reading data through a 3-wire SDI-12 interface and is compatible with any data recorder that is compliant with SDI-12 version 1.4 and earlier.
Its form factor is designed for shallower horizontal installations where it is forced into the sidewall of a trench that has been dug to the desired measurement depth.
Features
- Designed for easy use in shallower horizontal applications
- Acclima’s largest sampling volume with the wide spacing and the longer 15cm waveguides
- Highest accuracy Acclima sensor configuration
- Soil Smart analysis works with all mineral soil types
- Incident Wave Amplitude: 2.3 V
- 20% to 80% Incident Wave Rise Time: 300 ps
- Waveform Digitizing Resolution: 5 ps
- SDI-12 Interface
- 3-element 15 cm stainless steel waveguide
- 5m or 10m 3-conductor waterproof cable (standard)
- Waterproof Epoxy-filled Housing
Measurement Functions
- Volumetric Water Content: 0% to 100%
- Medium Permittivity: 1 to 85
- Medium Bulk Electrical Conductivity: 0 to 3000 µS/cm
- Medium Temperature: -40 to +55 degrees C
- Pore Water EC (Hilhorst Model): 0 to 55000 µS/cm
Measurement Performance
Parameter | Min | Max | Units |
RELATIVE PERMITTIVITY | |||
Range | 1 | 85 | – |
Resolution | 0.1 | – | |
Repeatability (RMS deviation) | 0.07 | – | |
Accuracy | -2 | +2 | %FS[1] |
Stability with Bulk Electrical Conductivity (0-3000 uS/cm) | -1 | +1 | %FS |
VOLUMETRIC WATER CONTENT (VWC) | |||
Range[2] | 0 | 100 | % |
Resolution | 0.1 | % | |
Repeatability (RMS deviation) | 0.07 | % | |
Accuracy | -2 | +2 | %FS[1] |
Stability with Bulk Electrical Conductivity (0-3000 uS/cm) | -1 | +1 | %FS |
TEMPERATURE[3] | |||
Range | -40 | +55 | °C |
Resolution | 0.1 | °C | |
Repeatability (RMS deviation) | 0.01 | °C | |
Accuracy (+5 to +35 °C) | -0.25 | +0.25 | °C |
Accuracy (-15 to +55 °C) | -0.5 | +0.5 | °C |
BULK ELECTRICAL CONDUCTIVITY (BEC) | |||
Range | 0 | 3000 | uS/cm |
Resolution | 1 | uS/cm | |
Repeatability (RMS deviation) | 3 | uS/cm | |
Accuracy (0 – 1000 uS/cm) | -25 | +25 | uS/cm |
Accuracy (1000 – 2500 uS/cm) | -2.5 | +2.5 | % |
Accuracy (2500 – 3000 uS/cm) | -5 | +5 | % |
[1] Percent Full scale, i.e., +/- 2 percentage points.
[2] VWC is calculated based on relative permittivity using the formula derived by Topp with minor modifications toallow readings in slurries and pure water. The relative permittivity of water varies with temperature, so to see a reading near 100%, the sensor must be fully immersed in water long enough to equilibrate temperature with the water. The water should be at 20.5C with at least 4cm of water around the rods on all sides, beyond the tips of the
rods, and at least 1cm of the sensor body immersed. VWC readings higher than 100% are possible when the permittivity is higher than 80 and/or temperature compensation is active.
[3] The temperature sensing element is located next to one of the outer waveguide electrodes.
Absolute Maximum Ratings
Stresses beyond those specified below may cause permanent damage to the sensor. These are stress ratings only and operation at these levels is not implied.
Parameter | Min | Max | Units |
Supply Voltage (Measured between the red and white wires) | -16 | +16 | Volts |
SDI-12 Data Voltage (Blue-White wires) | -16 | +16 | Volts |
External Voltage Applied to sensor rod | -0.3 | +4 | Volts |
Electrostatic discharge, center rod | IEC 61000−4−2 (ESD) | ||
Storage Temperature | -40 | +60 | °C |
-40 | +140 | °F |
Operating Conditions
Parameter | Min | Max | Units |
Operating Supply Voltage (Prior to 2H 2022) | +4.2 (+6.5) | +15 | Volts |
Operating Temperature (VWC errors due to ice) | -30 | +55 | °C |
Operating Temperature (VWC accurate, no ice allowed) | 0 | +55 | °C |
POWER CONSUMPTION | |||
Idle Current (sensor powered but inactive, 20 °C) | < 10 | uA | |
Idle Current (-35 to +50 °C) | < 50 | uA | |
Sensor read time | 0.4 typical | sec | |
Sensor read current (Supply Voltage = 12V) | 118 typical | mA | |
Sensor read current (Supply Voltage = 7V) | 150 typical | mA | |
Sensor communications current | 6 typical | mA |
SDI-12 Data Line Electrical Characteristics
Parameter | Min | Max | Units |
INPUT (when sensor is idle or receiving data) | |||
Resistance to GND | 160k | 175k | Ohms |
VIL (required input voltage in “marking” state) | -1 | 1.3 | V |
VIH (required input voltage in “spacing” state) | 3.2 | 6 | V |
OUTPUT (when sensor is transmitting data) | |||
Output impedance | 1000 | 1250 | Ohms |
VOL (output voltage in “marking” state) | 0 | 0.25 | V |
VOH (output voltage in “spacing” state) | 4.7 | 5.2 | V |

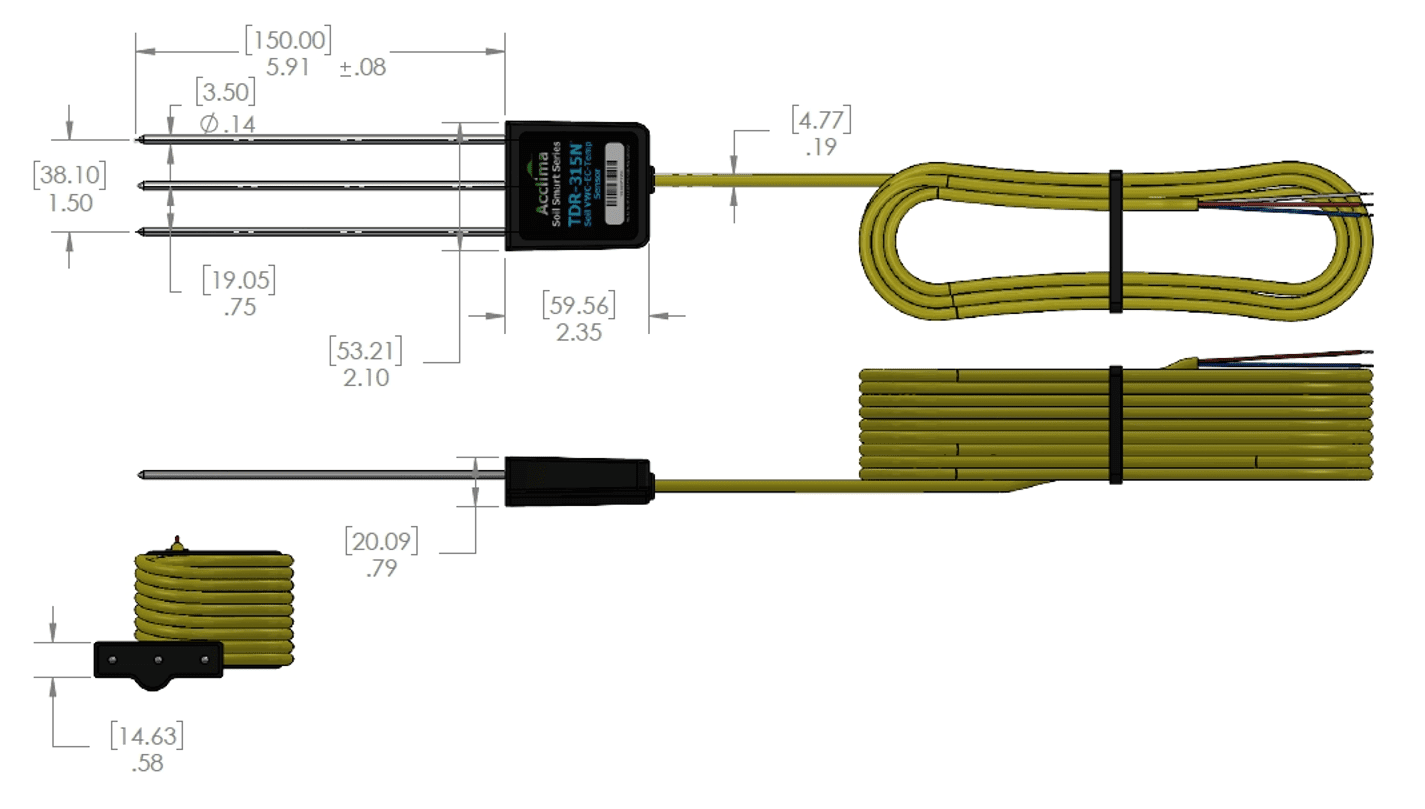

Physical Characteristics
Dimensions (without cable) | 21 cm x 5.3 cm x 2 cm |
Weight (without cable) | 105 g |
Cable weight | 32.7 g/m |
Composition | 316 Stainless Steel, Epoxy, ABS Plastic |
Cable | 3 copper conductor, 22 Ga., waterproof and UV resistant PVC jacket, 4.8mm overall diameter |
Communication Protocol | SDI-12 Version 1.4 |
