Solar Node
&
Gateway
A better way to collect sensor data.
*Currently only available in the U.S.
For other markets, stay tuned.

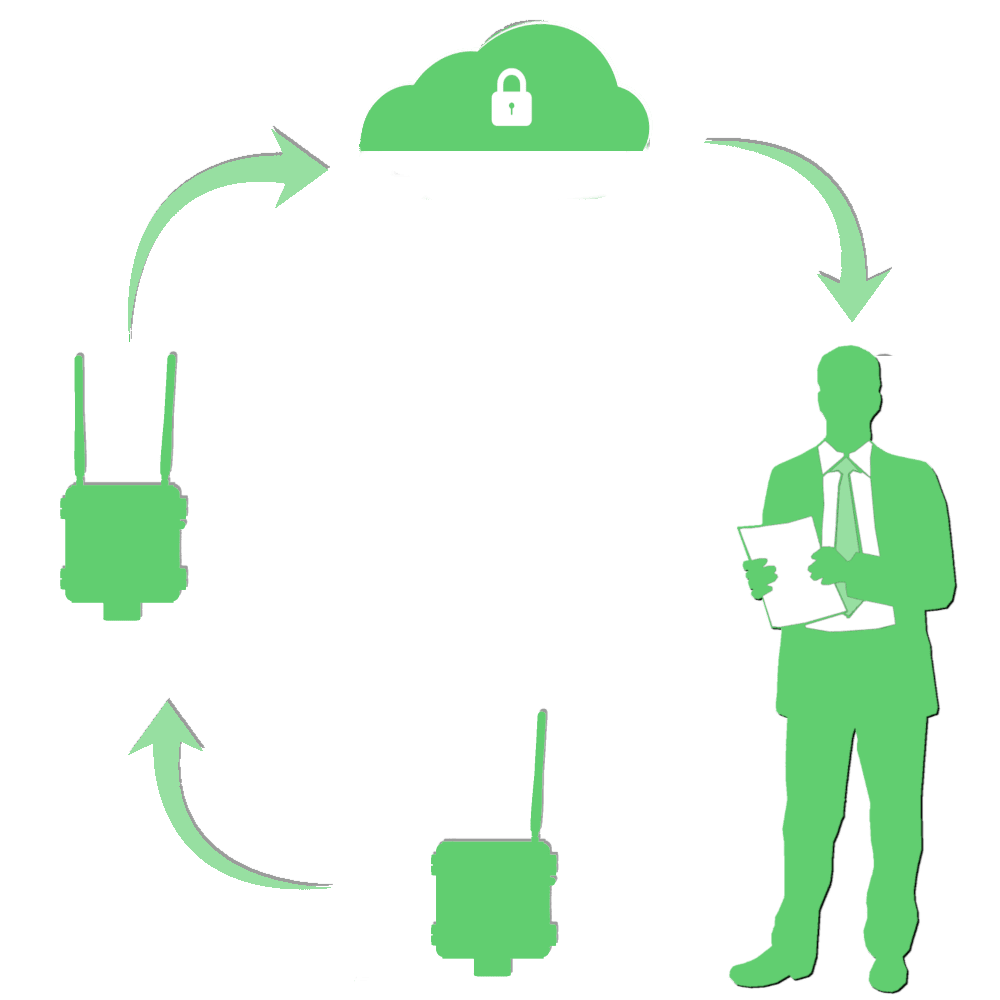

Wireless Turn-Key Solution
Gateway
Receive and transmit data from as many as 10x Nodes. Wirelessly stream data files to the Cloud on secure, private channels via major 4G cellular networks. Solar powered, vast storage capacity, and a rugged build provide the ability to track data for years.
Acclima Cloud
Store and analyze data points for an unlimited number of SDI-12 sensors and devices. View charts, graphs, and maps of your private sensor array. Organize your data with an easy-to-use interface, complete with robust customization options.
Node
Connect up to 10x SDI-12 sensor devices. Transmit data at long distances, over-the-air, as far as 5 miles, to a nearby Solar Gateway.
Manager
Create a hands free sensor array that spans as far as the eye can see. Track, download, and analyze soil water content, temperature, BulkEC, PwEC, permittivity, air temperature, or humidity data from the Cloud.

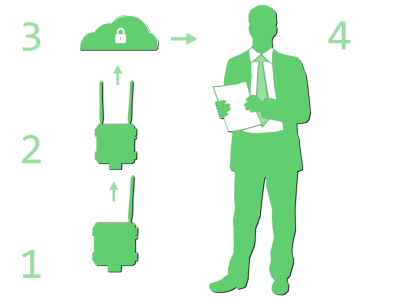

1. Node
Connect up to 10x SDI-12 sensor devices. Transmit data at long distances, over-the-air, as far as 5 miles, to a nearby Solar Gateway.1
2. Gateway
Receive and transmit data from as many as 10x Nodes. Wirelessly stream data files to the Cloud on secure, private channels via major 4G cellular networks. Solar powered, vast storage capacity, and a rugged build provide the ability to track data for years.
3. Acclima Cloud
Store and analyze data points for an unlimited number of SDI-12 sensors and devices. View charts, graphs, and maps of your private sensor array. Organize your data with an easy-to-use interface, complete with robust customization options.
4. Manager
Create a hands free sensor array that spans as far as the eye can see. Track, download, and analyze soil water content, temperature, BulkEC, PwEC, permittivity, air temperature, or humidity data from the Cloud.
Hardware
Solar Node
Solar Gateway
Connect up to 10x SDI-12 compatible devices per Node.
Support for up to 10x Nodes per Gateway.
Long range communication between Solar Node and Gateway.
Long lasting, rechargeable solar Lithium-ion battery.
Rugged, all-season, weather resistant enclosure.
Nodes take readings every ten minutes and send data to the Cloud every half hour.
Data upload via GSM cellular networks.
Software
Acclima Cloud Services
- Web app with an intuitive user interface, drop-down expanding menus, smooth animations, and illustrations of Gateways, Nodes, and sensors.
- Download all data from Cloud portal.
- Monitor current data and system health statuses.
- Manage data sharing and easily add additional users at no cost.
- Guaranteed big data privacy in conformance with federal law, reinforced by secure hardware-level encryption.
We'll pre-configure it for free!
Site pre-configuration options are available at no additional cost.
Reach us at sales@acclima.com for a free quote.
Pre-configuration does not include installation.
Prices are subject to change.

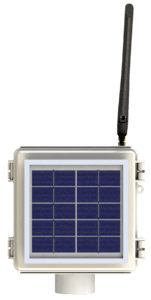

Solar Node
$515
Includes:
- Solar Node
- 3.7v Lithium-ion Battery
- LoRa Radio Antenna
- 5x SDI-12 Connectors
- PVC Elbow and Locking Nut Adapter Combo
- NodeView Software App
*A minimum system requires at least one Acclima Gateway, one Acclima Node, and one SDI-12 sensor.

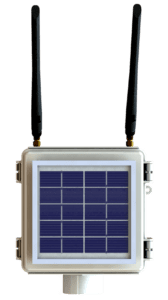

Solar Gateway
$806 (includes $187** annual Cloud connection fee***)
Includes:
- Solar Gateway
- 3.7v Lithium-ion Battery
- 2x LoRa and Cellular Radio Antenna
- Sim Card
- MicroSD Card
- PVC Elbow and Locking Nut Adapter Combo
- NodeView Software App
- User Guide
*A minimum system requires at least one Acclima Gateway, one Acclima Node, and one SDI-12 sensor.
**If using the Cloud internationally, additional fees apply and the connection costs $250 annually. Contact us for a quote.
***Cloud connection is not strictly required. You can gather data from Gateways manually if you would rather not use the Cloud. Contact us for a quote.

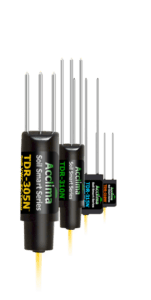

TDR Soil Sensors
From $322
Cutting-edge, digital, true time-domain reflectometer (TDR) soil moisture sensors for water and fertilizer conservation and agricultural research. SDI-12 compatible.
- Choose from a wide variety of Acclima TDR sensors.
- Add as many as 10x SDI-12 sensors to a single Node.
- Volumetric Water Content
- Soil Temperature
- Permittivity
- Bulk Electrical Conductivity
- Pore Water Electrical Conductivity
Specifications
Highlights
Weather Proof
Soil Moisture
Solar Powered
Data Logging
Cloud Connected
Secure

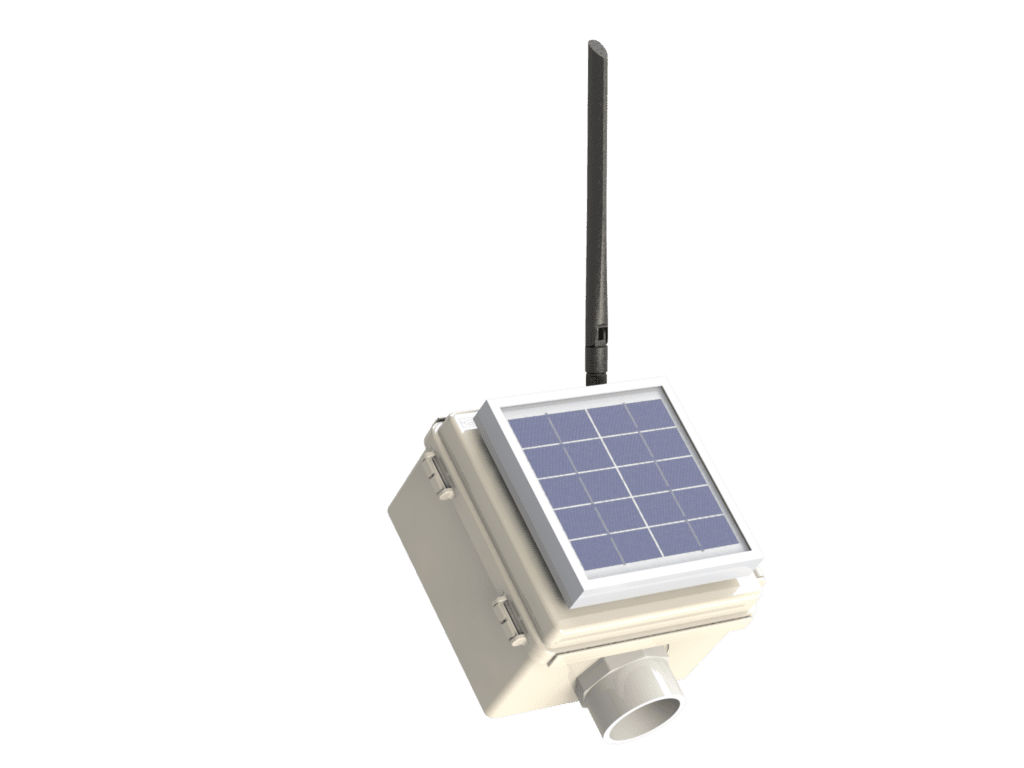

Acclima Node
Features
- Weather resistant enclosure
- Solar powered recharging 3.7v Lithium-ion battery
- Recharging supported temperatures from 5° C to 45°C
- Min & max operating temperatures from -20°C to 60°C
- 5 SDI-12 ports, support for 10 devices at 12v
- Support for sensors that consume up to 5 watts
- Records all M! command data
- LoRa radio transmitter: Normal range mode 0-2 miles line of sight data transmission (Data rate: 201.4 Bp/s *2 miles); Long range mode 2-5 miles line of sight data transmission (Data rate 66.5 Bp/s *5 miles)
- Radio frequency 902-928 MHz (Frequency Hopping Spread Spectrum)
Dimensions
- Height: 12.5″ (with antenna) 7″ (without antenna)
- Width: 6.63″
- Depth: 4.63″
- Weight: 2.25 lbs (package is 3 lbs)

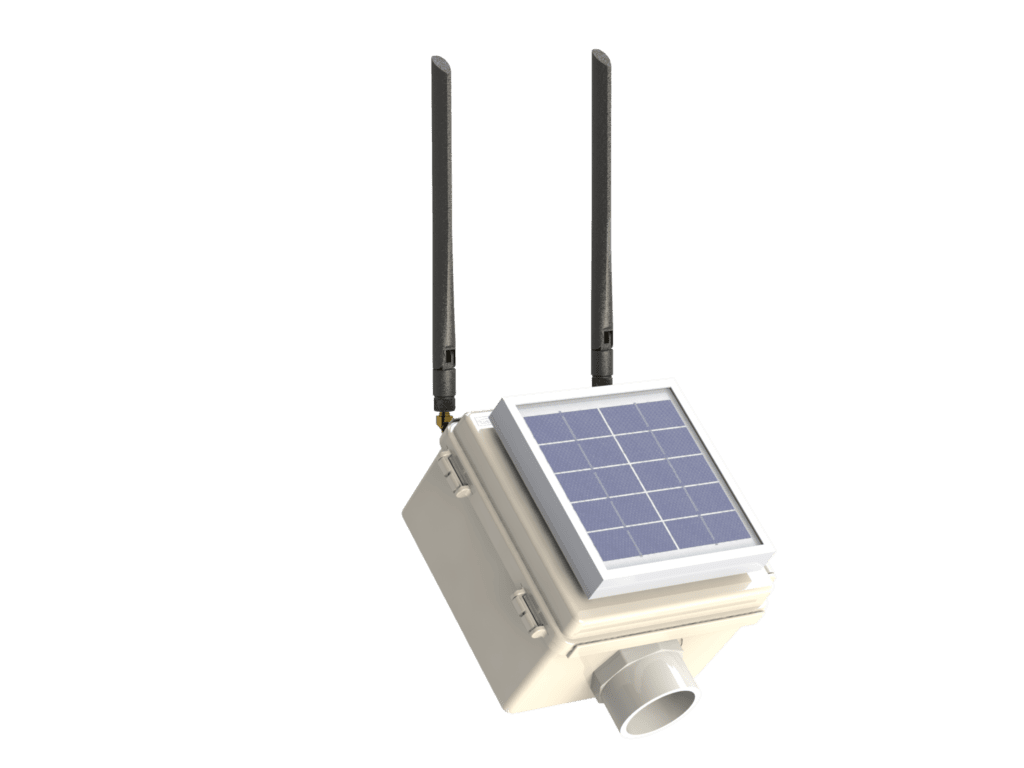

Acclima Gateway
Features
- Weather resistant enclosure
- Solar powered recharging 3.7v Lithium-ion battery
- Recharging supported temperatures from 5° C to 45°C
- LoRa radio receiver
- Cellular radio transmitter
- Cellular networks: GSM
- Cellular technology: 2G, CAT-M1 (4GLTE)
- Support for up to 10 node connections
- Scanning/forwarding @ 30 minute intervals
Dimensions
- Height: 12.5″ (with antenna) 7″ (without antenna)
- Width: 6.63″
- Depth: 4.63″
- Weight: 2.2 lbs (package is 2.65 lbs)
