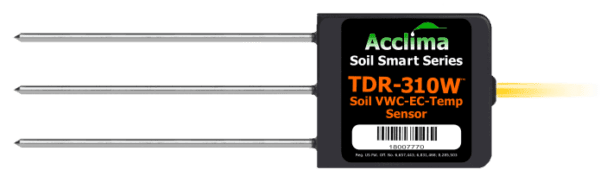

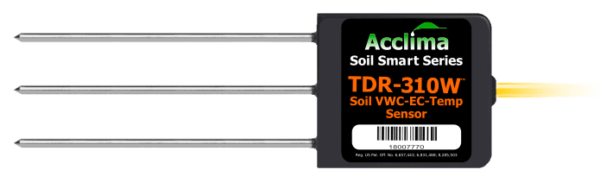

TDR-310W Sensor


A fully integrated digital TDR soil water content sensor (a.k.a., soil moisture sensor, probe, or meter) from the Soil Smart series. Works well in various soil types and soilless media. Sized with 10 cm waveguide rods to fit well with rockwool cubes for greenhouses.

The TDR-310W is a modification to the Acclima TDR-315N. Its shorter rods allow it fit in standard rockwool blocks. It is a complete integrated time domain reflectometer that combines ultra-fast waveform generating and digitizing functions with a precision 5 pico-second resolution time base and highly sophisticated waveform digitizing and analyzing firmware that provides true time domain analysis of soil-propagated waveforms. Its form factor is designed for shallower horizontal installations where it is forced into the sidewall of a trench that has been dug to the desired measurement depth.
